Quebec and the James Bay Region

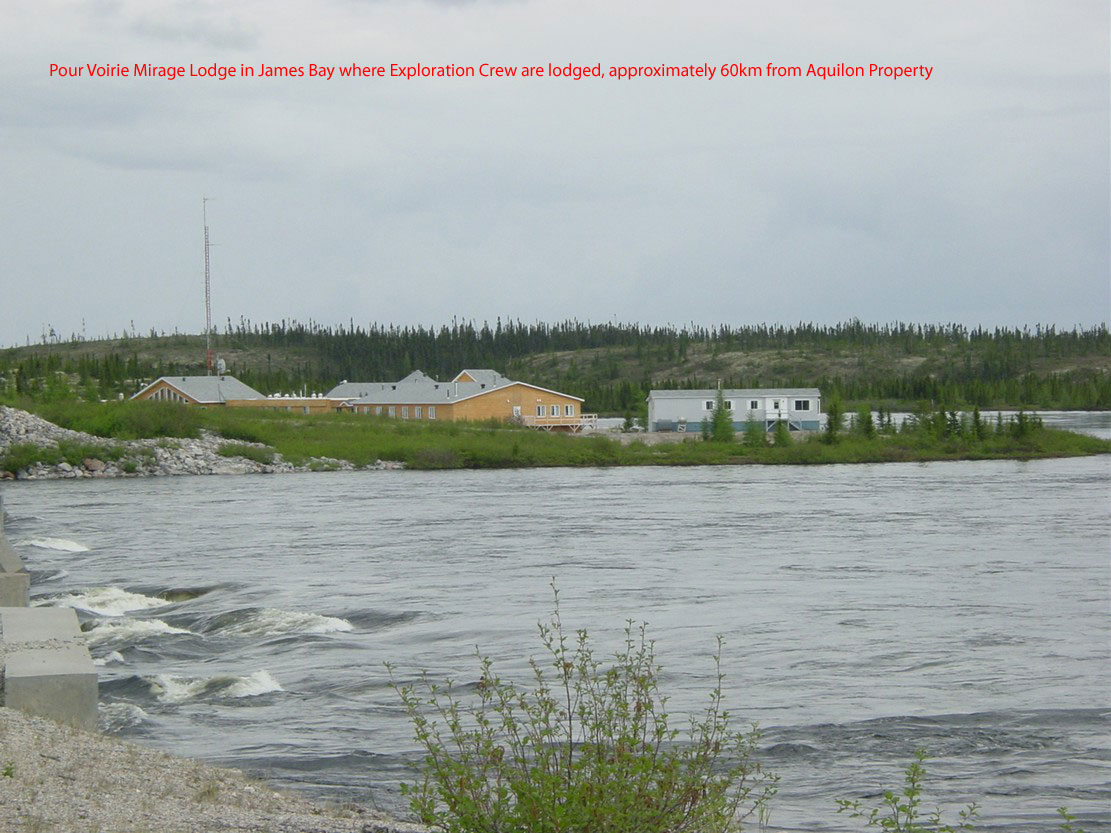

In surveys carried out in 2001-2002 and 2002-2003 by the Fraser Institute, a well known Canadian think-tank, Quebec was ranked as being one of the best areas in the world to explore and develop mines. Quebec is renowned for the production of precious metals, common metals, and industrial metals and ranks among the main mineral producers in the world. Quebec also ranks among the top ten most explored areas in the world. Despite this, over two thirds of the land remains partially explored or completely virgin. This is true of the general James Bay area, which has only fairly recently became accessible to exploration. Many world-class deposits have been discovered in Quebec. Due to the development of large hydroelectric dams over the past 25 years, the once remote James Bay region is now endowed with significant infrastructure that offers year-round accessibility by road, as well as electricity, airports, and hotels. For example, it is possible to drive directly by car from Montreal to the road adjacent to the main Aquilon Property and spend the evening at a world-class lodge offering all amenities, located about 40 minutes by car from the main area of exploration on the Aquilon Property. The James Bay region is gaining in prominence as one of Canada�s most important areas for mineral exploration. Virginia Gold Mines and Eastmain Resources Inc. are in the process of developing significant gold discoveries and are two of the many companies active in exploration in the region. |
![]() |

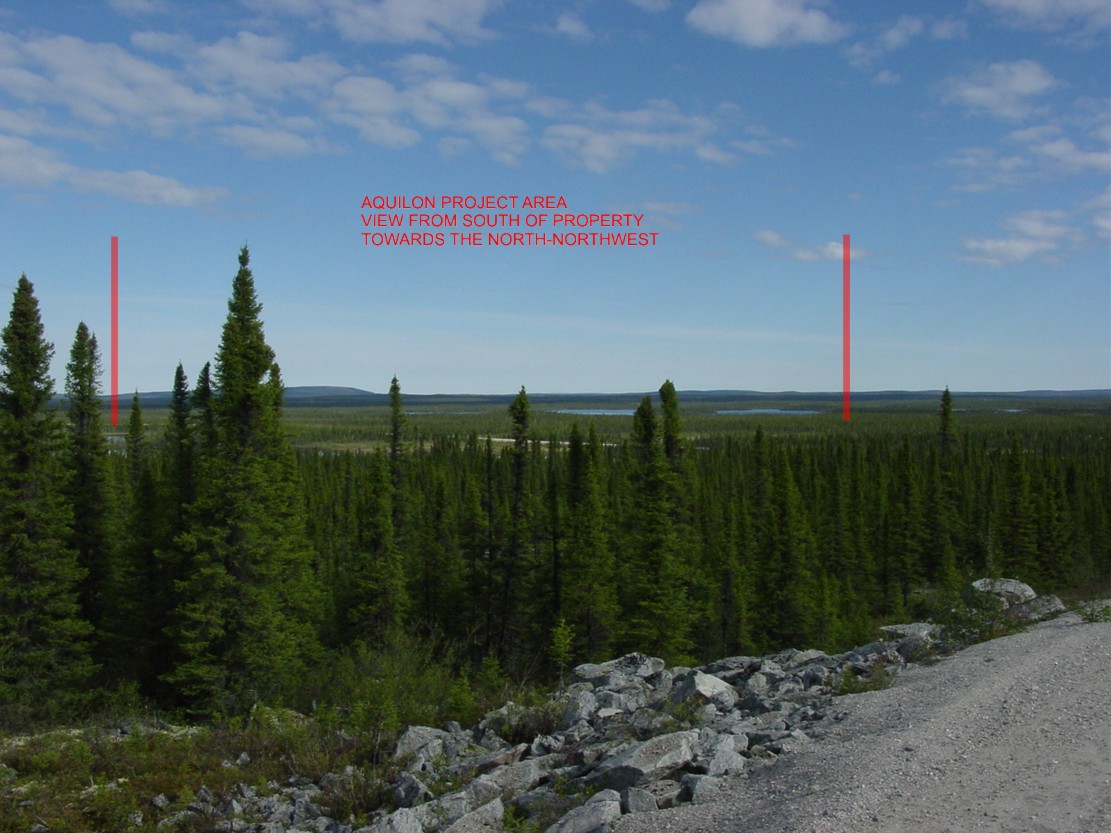

The Aquilon Gold Property covering 6,370 hectares or 63.7 square kilometers of a folded low-dipping greenstone belt hosting a felsic volcanic center with auriferous mineralization, is located 10km south of the Laforge 1 hydro-electrical complex in James Bay, Quebec. The area, which is readily accessible by road, is about 400 km east of Radisson and the property itself is crossed by a secondary gravel road which provides access to the LA-1 Complex. The property can be worked on a year round basis.
The geology of the area has been previously recognized as potentially favourable for a variety of mineralized environments including those at the Troilus (Inmet Mining), Clearwater (Eastmain Resources) and Bousquet � Doyon Mines.
Click to open in a new window

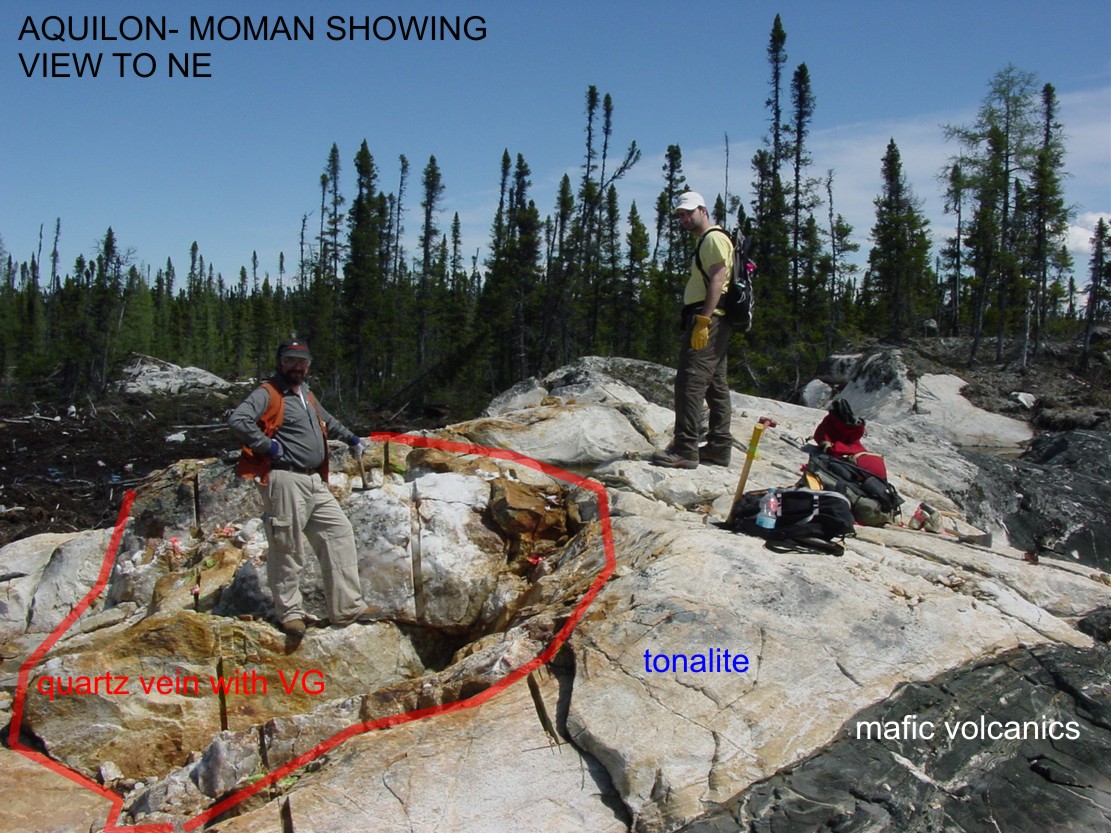

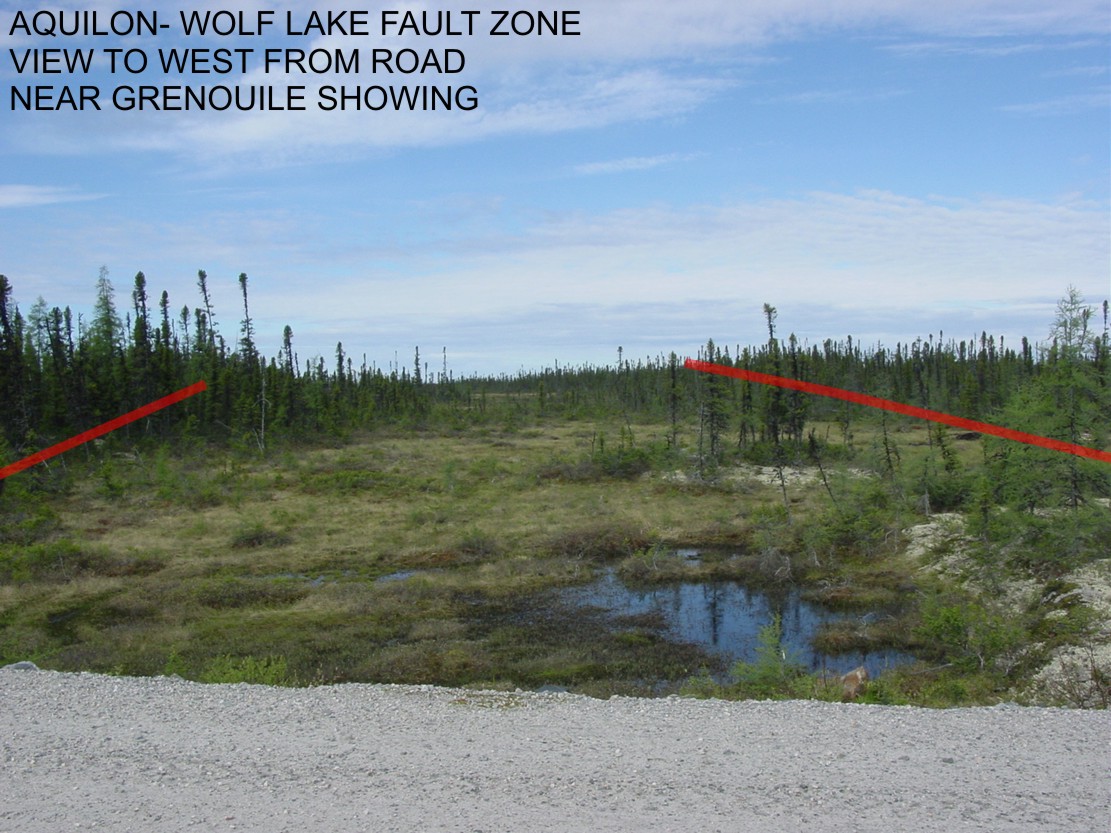

Previous work completed by Sirios Resources Inc and SOQUEM (1997-2002) has outlined numerous relatively short, shallow-dipping high grade (>20g/t Au) quartz veins over the 4km x 400 meter NE-oriented Wolf Fault. Centimetric to metric quartz veins occur within sericitic schist and at contacts of felsic volcanic units and a quartz-phyric tonalitic intrusive. Some very high gold assays: 287.4 g/t Au over 2.3 meters and 110.2 g/t Au over 3.49 meters have been returned. In the central (Lingo Lake) area of the property, east-west oriented auriferous metric quartz veins exhibit 200-300 meter strike lengths and are less deformed in the vicinity of a small tonalitic intrusion. Spectacular visible gold occurrences were discovered at the Lingo-West vein where ten of thirteen shallow drill holes returned : 35.99 g/t Au over 2.0 m; 77.81 g/t Au over 1.0 m; 13.15 g/t Au over 2.0 m; 3.85 g/t Au over 4.6 m; 6.89 g/t Au over 1.5 m; and 4.23 g/t Au over 1.5 m.

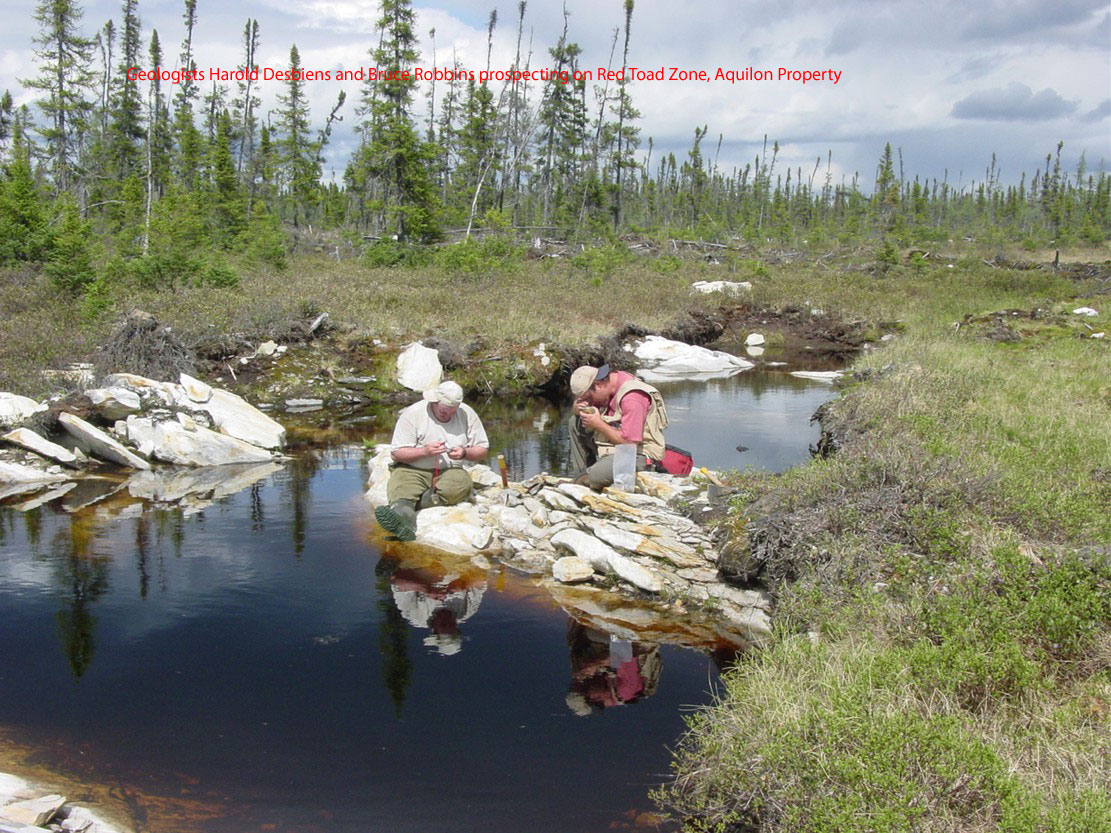

WORK COMPLETED BY GOLDEN TAG (2004-2005):In July 2004, Golden Tag completed an initial evaluation of the Aquilon Property. The purpose of this program was to review the geological setting of known auriferous zones and more importantly to prospect promising new exploration targets. Several grab samples were taken over historical showings and returned assays of>100 g/t Au, which extend the previously known mineralization trends within these areas. Prospecting to the east of these showings resulted in the discovery of a new gold showing � the Red Toad Showing- which returned significant assays in two grab samples, 1691 g/t Au and 153 g/t Au. (refer to Golden Tag�s news release of July 29, 2004 for a synopsis of significant results)
|
In September 2004, Golden Tag conducted a first phase exploration program of diamond drilling and mechanical surface stripping on the Red Toad Zone approximately 500 meters east of the historical. This was in response to the favourable results obtained in the initial evaluation. Drill results from this program consisting of 11 BTW core holes totaling 954 meters, 9 of which were drilled on the Red Toad Zone, indicated the Red Toad Zone was continuous over a minimum strike length of approximately 100 meters and had been confirmed from the surface to a depth of 36 meters. Hole AQU-04-03 intersected 4.33 meters of mineralization at an average grade of 10.03 g/t Au. The mechanical surface stripping program of five trenches conducted in conjunction with the drilling program traced the mineralization of the Red Toad Zone over a 250 meter strike length. A grab sample collected to the west returned 838 g/t Au. (refer to Golden Tag�s news release of November 9, 2004 for a synopsis of significant results) |
![]() |
![]() |
In April 2005, Golden Tag conducted a second phase diamond drilling program consisting of seven NQ core holes totaling 987 meters. This latest work was in response to the positive results from the trenching and diamond drilling program conducted in September 2004. Drill results to date indicate that the Red Toad Zone is continuous over a minimum strike length of approximately 130 meters and has been confirmed from the surface to depths over 75 meters. The Zone remains open to depth and along strike. Hole AQ-05-01 returned gold mineralization a further 290 meters to the southwest along strike from the Red Toad Zone. The Company finds that the apparent lateral and vertical continuity in drill results from the Zone is encouraging. A total of 11 holes out of 16 drilled to date on the Red Toad Zone have yielded gold mineralization. (refer to Golden Tag�s news release of June 6, 2005 for a synopsis of results and as well the map diagram of the continuous and inferred gold mineralization on the Red Toad Zone) click here for PDF map |
|
THE JOINT VENTURE AGREEMENT:
Golden Tag can earn up to a 60% interest in the Aquilon Property currently held 50% Sirios Resources and 50% SOQUEM, by expending a total of $1.5 million on exploration expenses over a 6 year period. Golden Tag will have earned a 40% interest after expending $750,000 of the amount in increments of $250,000 per year in the first 3 years and by issuing $100,000 in Golden Tag common shares to SOQUEM based on the price of the shares at the end of the 3 year period. The Company can earn an additional 20% interest by incurring exploration expenditures of $750,000 over the next 3 years and issuing a further $150,000 in Golden Tag shares based on the value at the end of the second 3 year period and granting a 1% NSR to SOQUEM. One-half of the 1% NSR can be purchased by making a payment of $500,000. Golden Tag will be operator of the project over the 6 year period and upon completion of its earn-in Sirios and Golden Tag will carry on a joint venture where each party will bear its proportionate share of exploration and development expenses. |
![]() |
